Fuse link CH10/14x85 gPV 40A/1500V 002626239
Specifications
- ETI Code:
- 002626239
- Description:
- CH10/14x85 gPV 40A/1500V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH

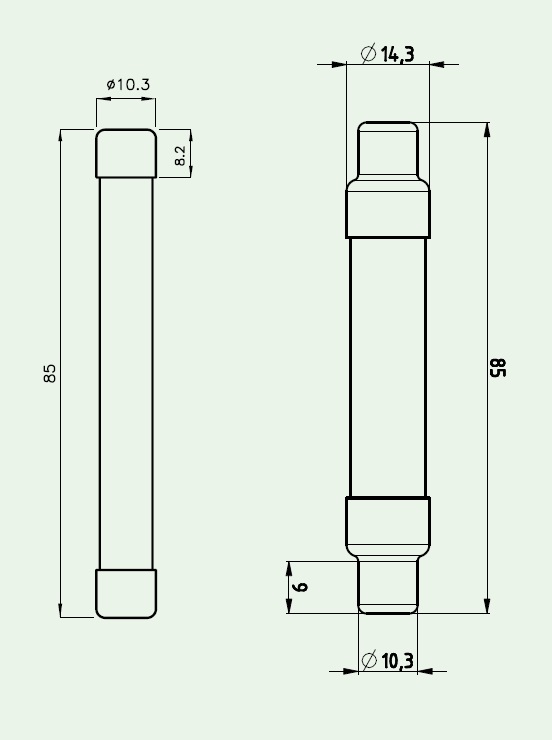

- Size:
- 10/14x85
- Rated current (A):
- 40
- Rated DC voltage (V):
- 1500
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 50
- Application:
- For protection of photovoltaic modules
- Indicator:
- Without
- Power dissipation (0,7x In) (W):
- 3,2
- Power dissipation (W):
- 7,7
- Operating joule integral (A2s):
- 2500
- Prearcing joule integral (A2s):
- 400
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400069603
- Net weight of the product
- 27.5 g
- Customs tariff
- 85351000
- logis_net_width
- 14 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 14 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400069610
- Basic packaging weight
- 0.3 kg
Transport packaging
- Transport packaging quantity
- 260
- EAN code for a transport packaging
- 3838400069627
- Transport packaging weight
- 8.15 kg
- Pallet quantity
- 31200
ETIM Clasification
- Classification
- EC002704
- Class name
- Low Voltage HRC fuse
- Application
- For protection of photovoltaic modules
- Construction size
- Other
- Rated voltage DC
- 1500
- Type of fuse status indicator
- None
- Rated current
- 40A
- Rated voltage
- 1500V
- Voltage type
- DC
- Utilization category
- Other

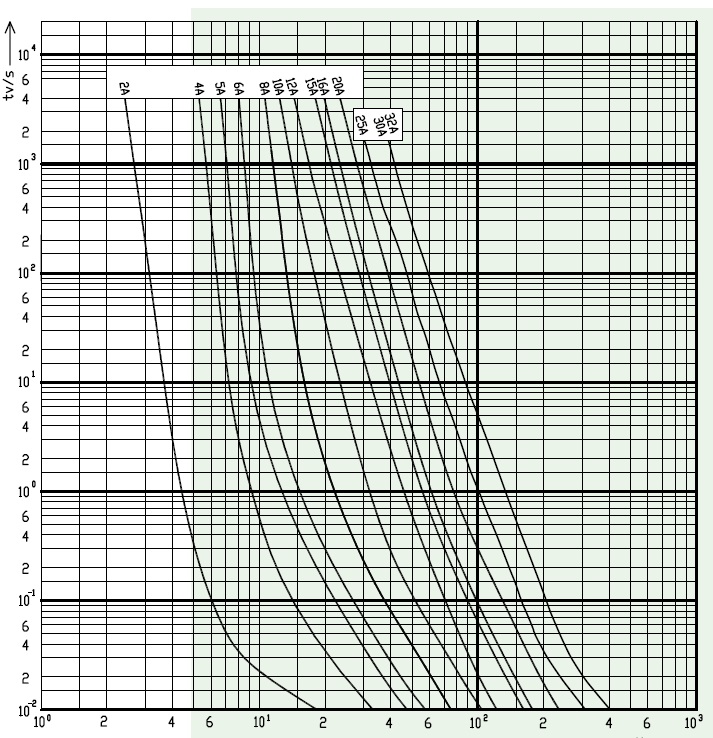

Characteristic
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
CH10/14x85 gPV 40A/1500V
