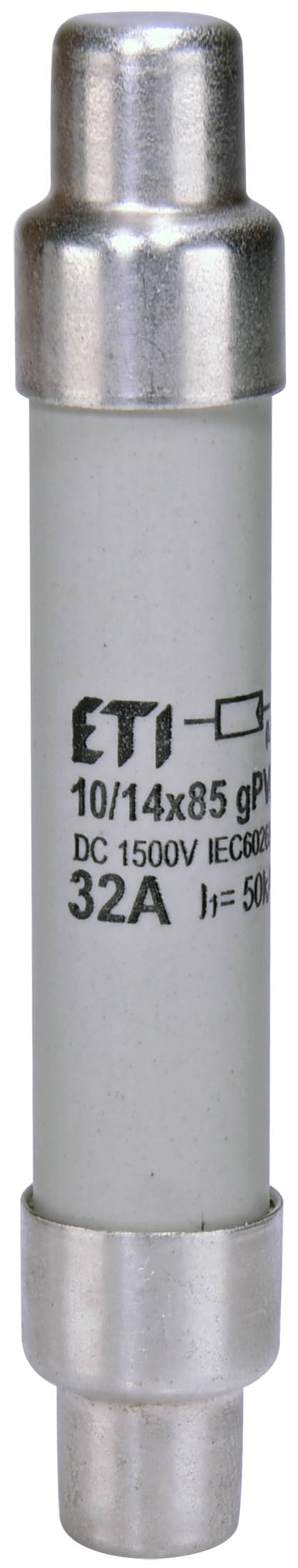

Fuse link CH10/14x85 gPV 35A/1500V 002626238
Specifications
- ETI Code:
- 002626238
- Description:
- CH10/14x85 gPV 35A/1500V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH
- Size:
- 10/14x85
- Rated current (A):
- 35
- Rated DC voltage (V):
- 1500
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 50
- Application:
- For protection of photovoltaic modules
- Indicator:
- Without
- Power dissipation (0,7x In) (W):
- 2,9
- Power dissipation (W):
- 7
- Operating joule integral (A2s):
- 1.500
- Prearcing joule integral (A2s):
- 260
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400085641
- Net weight of the product
- 27.5 g
- Customs tariff
- 85351000
- logis_net_width
- 14 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 14 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400085665
- Basic packaging weight
- 0.3 kg
Transport packaging
- Transport packaging quantity
- 260
- EAN code for a transport packaging
- 3838400085672
- Transport packaging weight
- 8.15 kg
- Pallet quantity
- 31200
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Construction size
- Other
- Rated voltage DC
- 1500
- Application
- For protection of photovoltaic modules
- Type of fuse status indicator
- None
- Rated current
- 35A
- Rated voltage
- 1500V
- Voltage type
- DC
- Utilization category
- Other

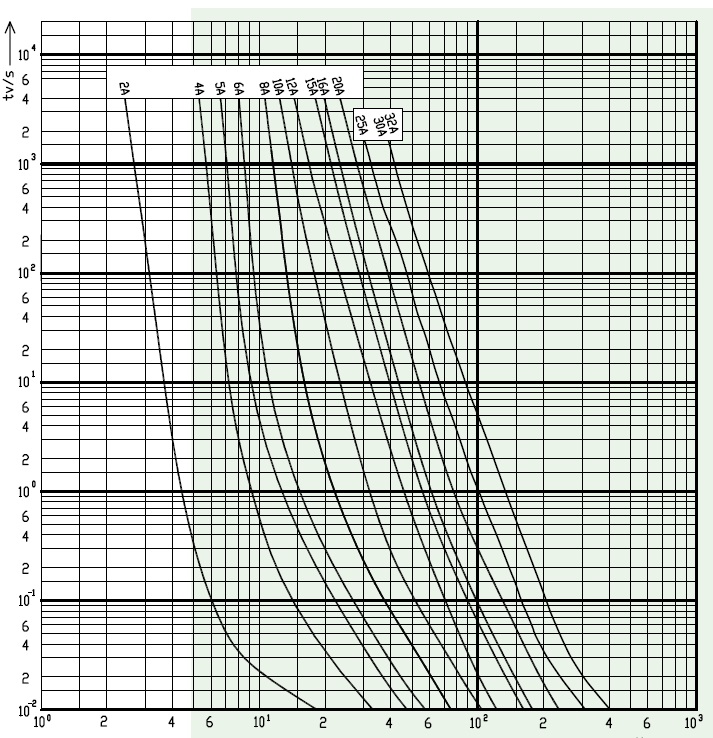

Characteristic

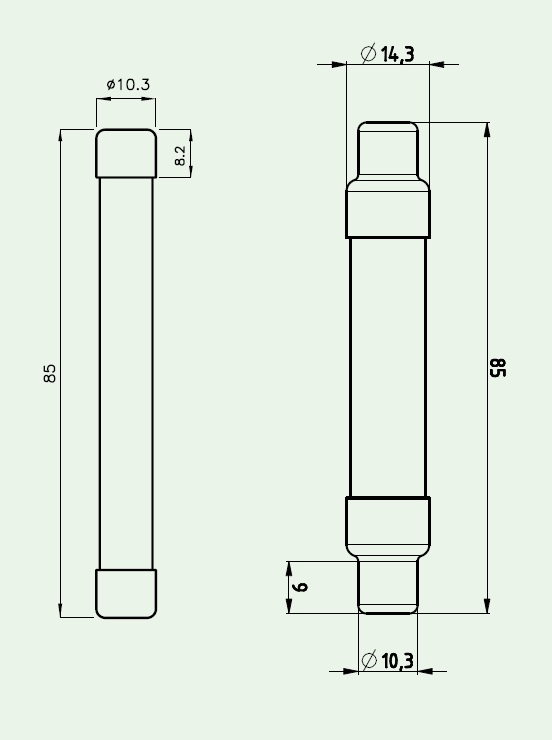

Images & Diagrams
