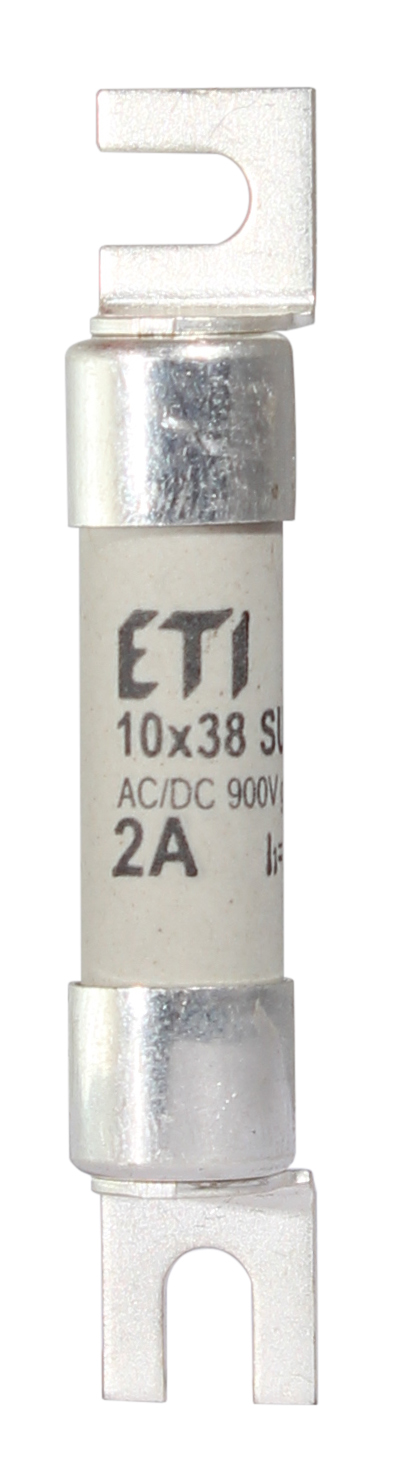

Fuse link CH10x38SU gR 2A/900V AC/DC 002625310
Specifications
- ETI Code:
- 002625310
- Description:
- CH10x38SU gR 2A/900V AC/DC
- Class name:
- Fuse link
- efuse:
- 1
- Designed for:
- Protection of PV installations
- Product subgroup:
- PV
- Product group:
- Special purpose fuses
- L/R (ms):
- 2
- Type:
- CH SU
- Size:
- 10x38
- Rated current (A):
- 2
- Rated AC voltage (V):
- 900
- Rated DC voltage (V):
- 900
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Application:
- For protection of semiconductor devices
- Power dissipation (0,7x In) (W):
- 0,44
- Power dissipation (W):
- 1,1
- Prearcing joule integral (A2s):
- 1,2
- Operating joule integral (A2s):
- 1,89
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400052476
- Net weight of the product
- 10.2 g
- Customs tariff
- 85361010
- logis_net_width
- 10 mm
- logis_net_height
- 60 mm
- logis_net_depth
- 11 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895612261
- Basic packaging weight
- 0.104 kg
Transport packaging
- Transport packaging quantity
- 380
- EAN code for a transport packaging
- 3838895612278
- Transport packaging weight
- 4.12 kg
- Pallet quantity
- 63840
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Max. rated operation voltage Ue AC
- 900
- Construction size
- CH10
- Rated voltage DC
- 900
- Application
- For protection of semiconductor devices
- Rated current
- 2
- Size
- 10x38 mm
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 2A
- Breaking capacity
- 50kA
Characteristic
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.

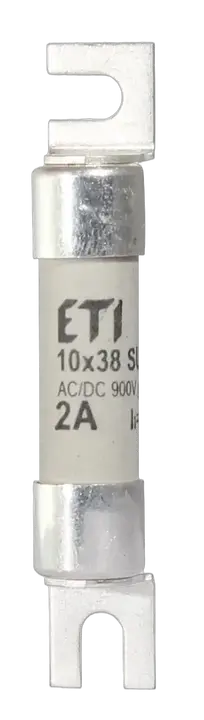

CH10x38SU gR 2A/900V AC/DC
