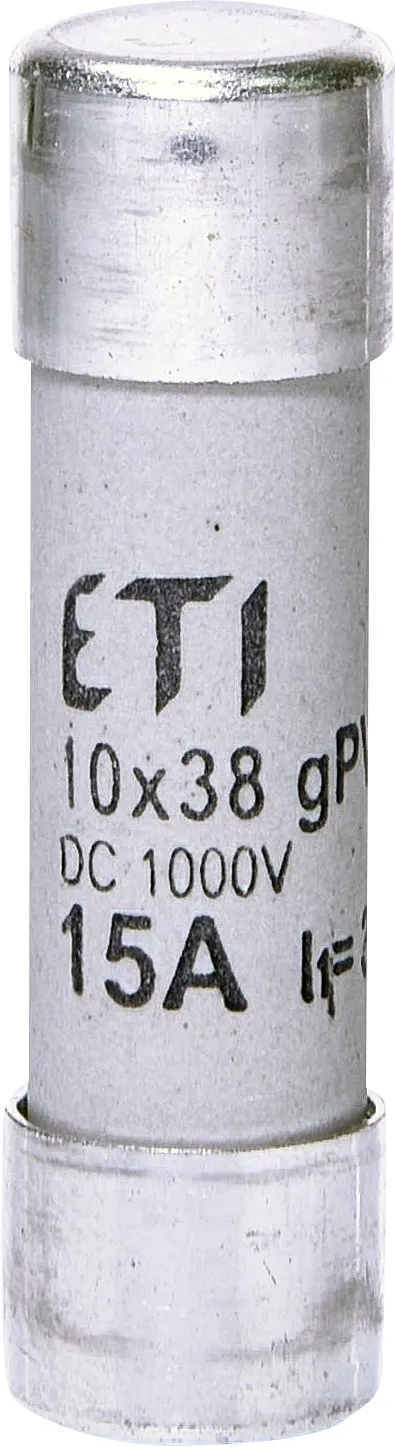

Fuse link CH10x38 gPV 15A/1000V DC 002625080
Specifications
- ETI Code:
- 002625080
- Description:
- CH10x38 gPV 15A/1000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH
- Size:
- 10x38
- Rated current (A):
- 15
- Rated DC voltage (V):
- 1000
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 30
- Application:
- For protection of photovoltaic modules
- Power dissipation (0,7x In) (W):
- 1
- Power dissipation (W):
- 2,2
- Operating joule integral (A2s):
- 145
- Prearcing joule integral (A2s):
- 49
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400056207
- Net weight of the product
- 8.3 g
- Customs tariff
- 85361050
- logis_net_width
- 10 mm
- logis_net_height
- 39 mm
- logis_net_depth
- 10 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895667834
- Basic packaging weight
- 0.08 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895667841
- Transport packaging weight
- 4.1 kg
- Pallet quantity
- 85000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Size
- 10x38 mm
- Rated voltage
- 1000V
- Voltage type
- DC
- Utilization category
- Other
- Nominal current
- 15A
- With striker
- No
- Breaking capacity
- 30kA
