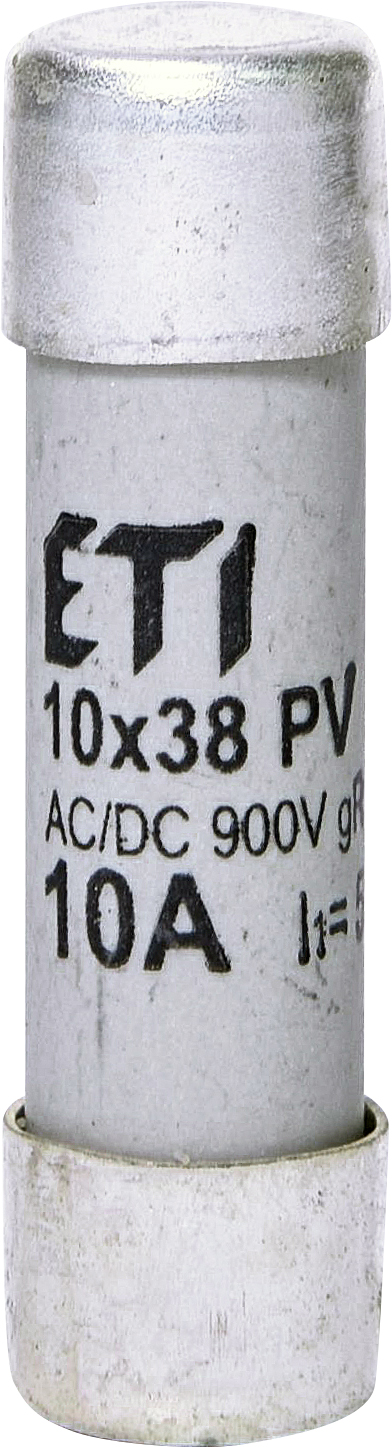

Fuse link CH10x38 gR 10A/900V AC/DC 002625031
Specifications
- ETI Code:
- 002625031
- Description:
- CH10x38 gR 10A/900V AC/DC
- Class name:
- Fuse link
- efuse:
- 1
- Designed for:
- Protection of PV installations
- Product subgroup:
- PV
- Product group:
- Special purpose fuses
- L/R (ms):
- 2
- Type:
- CH
- Size:
- 10x38
- Rated current (A):
- 10
- Rated AC voltage (V):
- 900
- Rated DC voltage (V):
- 900
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Application:
- For protection of semiconductor devices
- Power dissipation (0,7x In) (W):
- 0,98
- Power dissipation (W):
- 2,44
- Prearcing joule integral (A2s):
- 20
- Operating joule integral (A2s):
- 94
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400052339
- Net weight of the product
- 8.3 g
- Customs tariff
- 85361010
- logis_net_width
- 10 mm
- logis_net_height
- 38 mm
- logis_net_depth
- 10 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895605300
- Basic packaging weight
- 0.08 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895605317
- Transport packaging weight
- 4.1 kg
- Pallet quantity
- 85000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Rated current
- 10
- Max. rated operation voltage Ue AC
- 900
- Rated voltage DC
- 900
- Construction size
- CH10
- Application
- For protection of semiconductor devices
- Size
- 10x38 mm
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 10A
- Breaking capacity
- 50kA
Characteristic

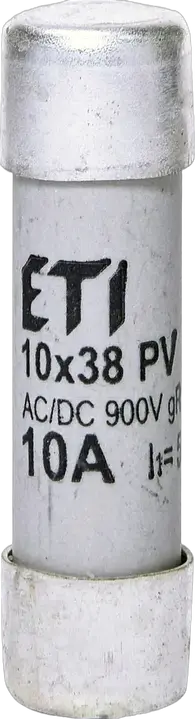

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.

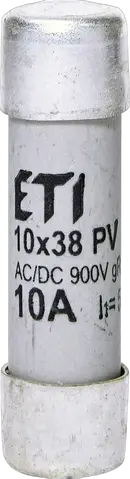

CH10x38 gR 10A/900V AC/DC
