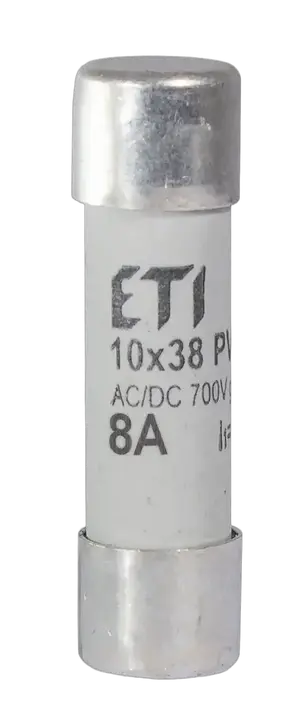

Fuse link CH10x38 gR 8A/700V AC/DC 002625020
Specifications
- ETI Code:
- 002625020
- Description:
- CH10x38 gR 8A/700V AC/DC
- Class name:
- Fuse link
- efuse:
- 1
- Designed for:
- Protection of PV installations
- Product subgroup:
- PV
- Product group:
- Special purpose fuses
- L/R (ms):
- 2
- Type:
- CH
- Size:
- 10x38
- Rated current (A):
- 8
- Rated AC voltage (V):
- 700
- Rated DC voltage (V):
- 700
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Application:
- For protection of semiconductor devices
- Power dissipation (0,7x In) (W):
- 0,7
- Power dissipation (W):
- 1,62
- Prearcing joule integral (A2s):
- 30
- Operating joule integral (A2s):
- 98
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400052230
- Net weight of the product
- 8.3 g
- Customs tariff
- 85361010
- logis_net_width
- 10 mm
- logis_net_height
- 38 mm
- logis_net_depth
- 10 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895605102
- Basic packaging weight
- 0.08 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895605119
- Transport packaging weight
- 4.1 kg
- Pallet quantity
- 85000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Application
- For protection of semiconductor devices
- Rated current
- 8
- Max. rated operation voltage Ue AC
- 700
- Construction size
- CH10
- Rated voltage DC
- 700
- Size
- 10x38 mm
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 8A
- Breaking capacity
- 50kA
