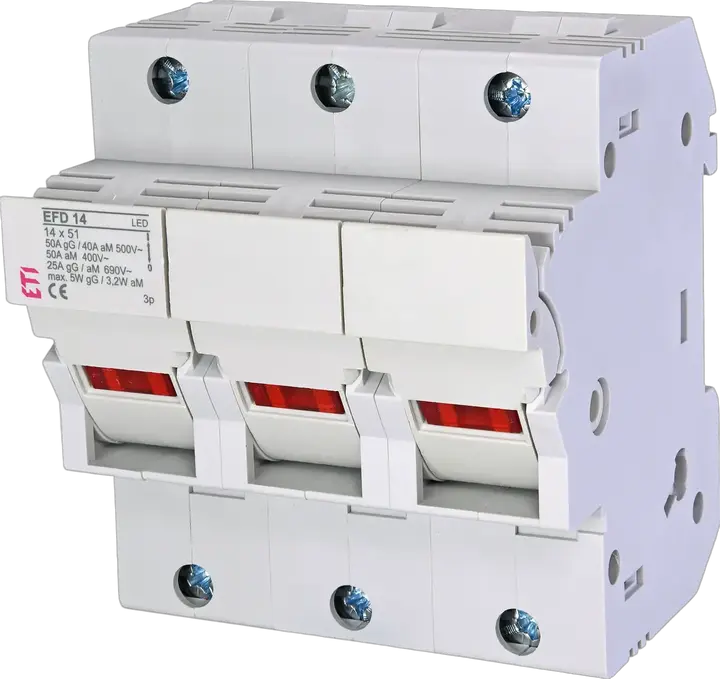

Fuse disconnector EFD 14 3p LED 002560014
Specifications
- ETI Code:
- 002560014
- Description:
- EFD 14 3p LED
- Class name:
- Fuse disconnector
- Mounting type:
- TH 35
- Size:
- 14x51
- Rated current (A):
- 50
- Number of poles:
- 3
- Rated AC voltage (V):
- 690
- Utilization category:
- AC-22B
- Connection:
- 1,5 - 35mm2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895745068
- Net weight of the product
- 0.313 kg
- Customs tariff
- 85389099
- logis_net_width
- 81 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 76 mm
Basic packaging
- Basic packaging quantity
- 4
- EAN code for a basic packaging
- 3838895701347
- Basic packaging weight
- 1.318 kg
Transport packaging
- Transport packaging quantity
- 32
- EAN code for a transport packaging
- 3838895701354
- Transport packaging weight
- 11.1 kg
- Pallet quantity
- 768
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Mounting method
- Other
- For fuse size
- 14x51 mm
- Number of poles
- 3
