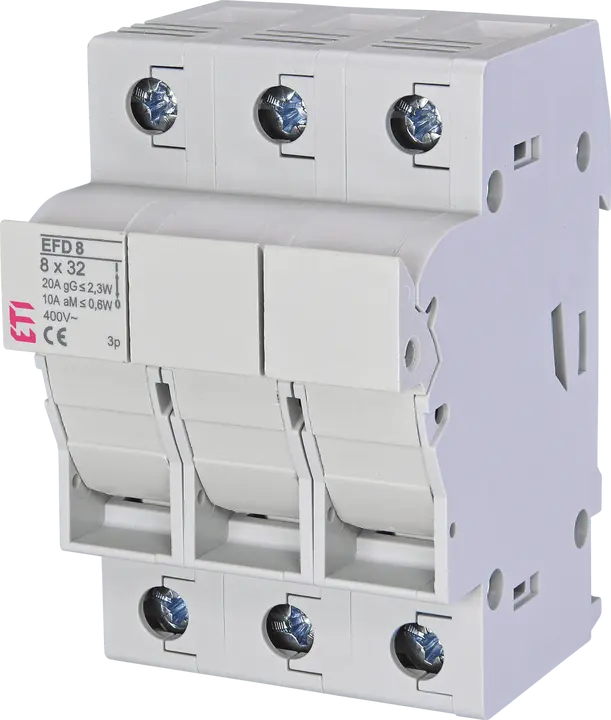

Fuse disconnector EFD 8 3p 002520004
Specifications
- ETI Code:
- 002520004
- Description:
- EFD 8 3p
- Class name:
- Fuse disconnector
- Size:
- 8x31
- Rated current (A):
- 20
- Number of poles:
- 3
- Rated AC voltage (V):
- 400
- Utilization category:
- AC-22B
- Connection:
- 1 - 25mm2
- Mounting:
- 35mm DIN rail
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400032225
- Net weight of the product
- 184 g
- Customs tariff
- 85389099
- logis_net_width
- 53 mm
- logis_net_height
- 81 mm
- logis_net_depth
- 64 mm
Level 1 Packaging
- Basic packaging quantity
- 4
- EAN code for a basic packaging
- 3838895703273
- Basic packaging weight
- 0.792 kg
Level 2 Packaging
- Transport packaging quantity
- 36
- EAN code for a transport packaging
- 3838895703280
- Transport packaging weight
- 7.384 kg
- Pallet quantity
- 1872
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Construction size
- 8x31
- Number of knife blade fuse holders
- 3
- Rated current
- 20
- Max. rated operation voltage Ue AC
- 400
- Mounting method
- Other
- For fuse size
- Other
- Number of poles
- 3
