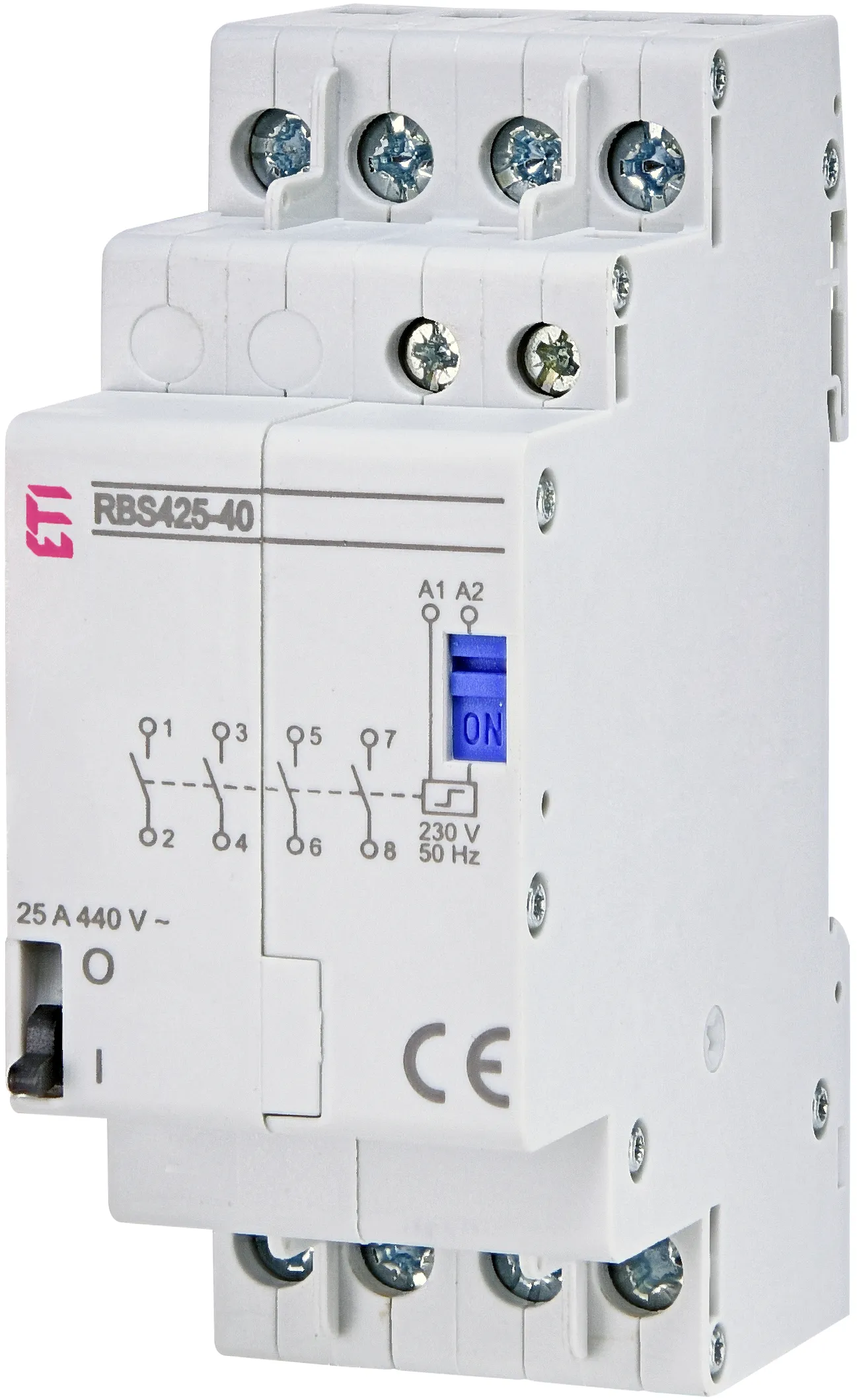

Switch RBS425-40-230V AC 002464125

Specifications Add to my products Add to comparison Remove from comparison

ETI Code:

002464125

Description:

RBS425-40-230V AC

Class name:

Switch

Max. number of impulses per minute:

15

Storage temperature (°C):

-30...+80

Max. back-up fuse for short circuit protection:

25 A gL

Min. impulse duration between two impulses (ms):

150

Max. impulse duration at Uc:

1 hr

Min. impulse duration at Uc (ms):

50

Distance between contacts and coil (mm):

>6

Min. distance of open contacts (mm):

>3

Max. vibration resistance (g):

3

Max. shock resistance (g):

15

Resistance to humidity:

95 % RH @ +55 °C

Function:

Bistable Switch RBS

Supply voltage (V):

230

Rated operation current Ie at AC1 (A):

25

Voltage type:

AC

Number of NO contacts:

4

Rated Frequency (Hz):

50/60

Size:

4p, 2-modules

Rated current (A):

25

Number of poles:

4

Terminal screw:

M4 (main circuit)/M3 (control circuit)

Rated cross section:

1...10

Tightening torque (Nm):

1,2

IP rating:

IP20

Ambient temperature (°C):

-25...+55

Mounting type:

TH 35

Rated operational voltage AC (V):

440

Rated insulation voltage (V):

440

Thermal current Ith (A):

25

Number of modules:

2

Width (mm):

70

Power dissipation (W):

8

Mechanical cycles:

100.000

Electrical cycles:

10.000

Standards:

IEC/EN 60669-2-2
