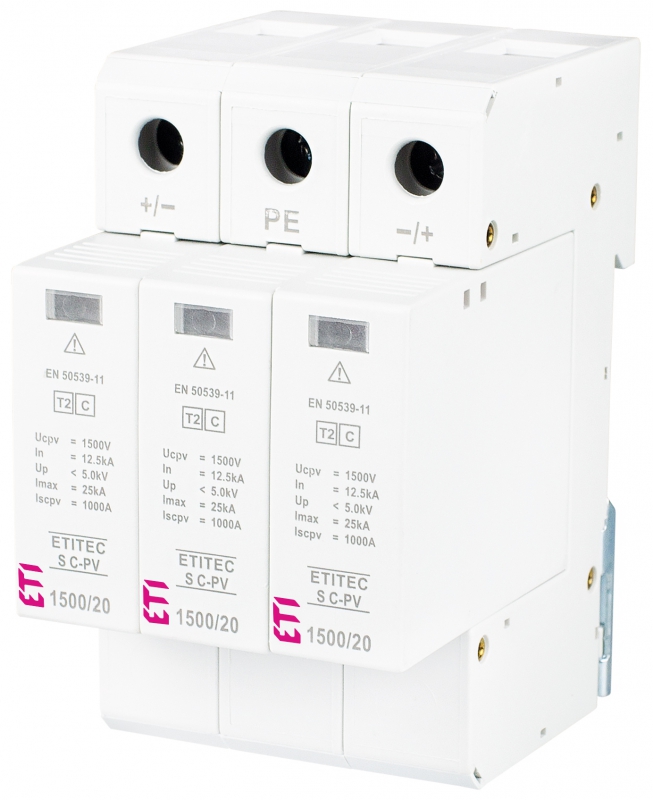

Surge arrester ETITEC S C-PV 1500/20 Y 002445313 Obsolete

This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

Specifications

ETI Code:
002445313
Description:
*ETITEC S C-PV 1500/20 Y
Class name:
Surge arrester
Current type:
DC
Usage (IEC/VDE):
II / C
Function:
SPD
Type:
T2
Number of poles:
2
Size:
3 modules
IP rating:
IP20
Mounting:
DIN rail (top hat rail) 35 mm
Catalogue Group:
ETITEC S C PV
Number of modules:
3
Up - Voltage protection level (kV):
4,8
Leakage current:
NO
Applied technology:
MOV+GDT
Built-in depth (mm):
68
Max. discharge current Imax, 8/20 (kA):
40
Remote signalisation:
NO
In 8/20 (kA):
20
Installation:
PV protection

Documents

Product

Customs tariff
85363090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895635512
Basic packaging weight
0.4  kg

Transport packaging

Transport packaging quantity
5
EAN code for a transport packaging
3838895635529
Transport packaging weight
2  kg
Pallet quantity
2000
Classification
EC000941
Class name
Surge protection device for power supply systems
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
2
Nominal discharge surge current (8/20)
20
Short-circuit breaking capacity (Isccr)
0,2
Max. discharge surge current (8/20)
40
Max. continuous voltage DC
1500
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Max. PV-voltage
1250
Voltage protection level
4,8
Max. conductor cross section solid (solid, stranded)
35
Max. conductor cross section flexible (fine-strand)
25
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
002445313 Flush mounted enclosure Surge arrester, *ETITEC S C-PV 1500/20 Y Green protect ETITEC ETITEC C-PV ETITEC C-PV ETITEC C-PV ETITEC C-PV Photovoltaic, battery fuses and devices GREEN PROTECT Surge arresters for PV Surge protection devices *ETITEC S C-PV 1 Function SPD Type T2 Current type DC Size 3 modules Number of poles 2 Usage II IEC/VDE CIEC/VDE Max. discharge current Imax, 8/20 40kA Remote signalisation NO IP rating IP20 Mounting DIN rail (top hat rail) 35 mm Catalogue Group ETITEC S C PV Installation PV protection In 8/20 20kA Number of modules 3 Up - Voltage protection level 4,8kV Leakage current YES Applied technology MOV Built-in depth 68mm DC max continous operating voltage Uc 1500 Surge arrester *ETITEC SPD T2 20kA 4,8kV
