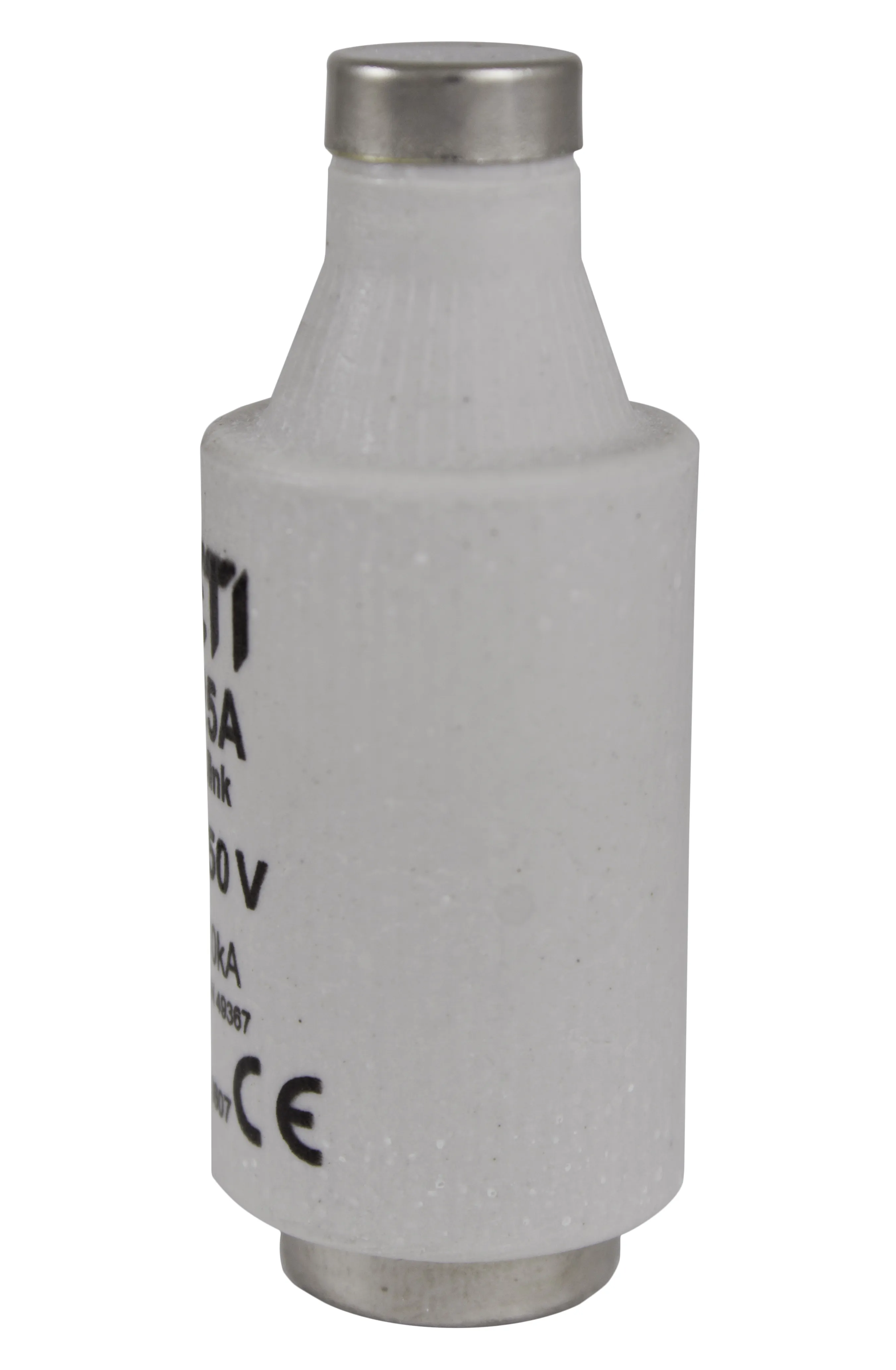

Fuse link DIII gF 16A/750V 002313605
Specifications
- ETI Code:
- 002313605
- Description:
- DIII gF 16A/750V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- D
- Size:
- DIII
- Rated current (A):
- 16
- Rated AC voltage (V):
- 750
- Characteristics:
- gF
- Breaking capacity AC (kA):
- 10
- Dimensions:
- E33
- Indicator:
- Top fuse status indicator
- Standards:
- DIN EN 60269-1, DIN EN 60269-3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400029232
- Net weight of the product
- 0.072 kg
- Customs tariff
- 85361050
- logis_net_width
- 27 mm
- logis_net_height
- 27 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895422082
- Basic packaging weight
- 0.353 kg
Transport packaging
- Transport packaging quantity
- 200
- EAN code for a transport packaging
- 3838895422099
- Transport packaging weight
- 14.4 kg
- Pallet quantity
- 10400
ETIM Clasification
- Classification
- EC000099
- Class name
- D-system fuse link
- Construction size
- DIII
- Rated current
- 16A
- Rated voltage
- 750V
- Colour code
- Grey
- Utilization category
- Other
- Release characteristic
- Fast (F)
Characteristic
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
DIII gF 16A/750V
