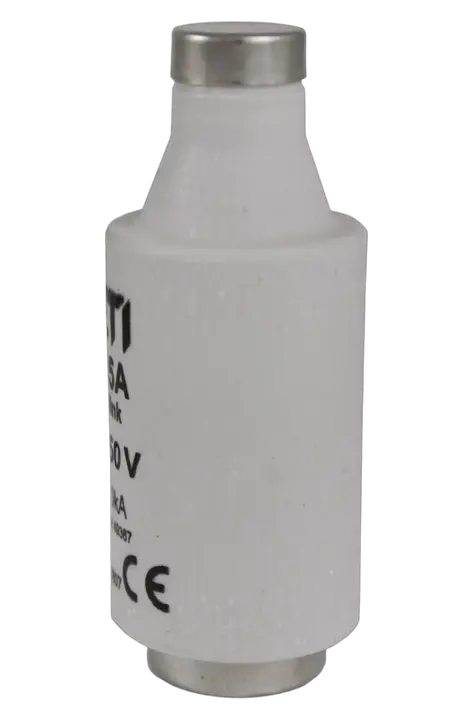

Fuse link DIII gF 4A/750V 002313602

Specifications

ETI Code:
002313602
Description:
DIII gF 4A/750V
Class name:
Fuse link
efuse:
1
Type:
D
Size:
DIII
Rated current (A):
4
Rated AC voltage (V):
750
Characteristics:
gF
Breaking capacity AC (kA):
10
Dimensions:
E33
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838400029201
Net weight of the product
0.072  kg
Customs tariff
85361010
logis_net_width
27  mm
logis_net_height
27  mm
logis_net_depth
70  mm

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895422020
Basic packaging weight
0.353  kg

Transport packaging

Transport packaging quantity
200
EAN code for a transport packaging
3838895422037
Transport packaging weight
14.4  kg
Pallet quantity
10400
Classification
EC000099
Class name
D-system fuse link
Construction size
DIII
Rated current
4A
Rated voltage
750V
Colour code
Brown
Utilization category
Other
Release characteristic
Fast (F)
ETIM Classification – Version 7.0
