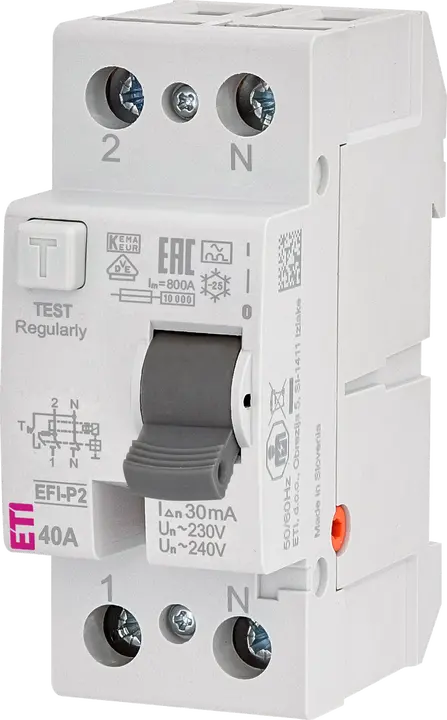

RCCB EFI-P2 A 40/0.03 002061112
Specifications
- ETI Code:
- 002061112
- Description:
- EFI-P2 A 40/0.03
- Class name:
- RCCB
- Rated residual current (A):
- 0.03
- Current type:
- A
- Rated current (A):
- 40
- Rated residual operating current IΔn (A):
- 0.03
- Type:
- A
- Number of poles:
- 1+N
- Rated conditional short-circuit current Inc (kA):
- 10
- Tripping time:
- Undelayed
- Rated voltage (V):
- 240
- Rated Frequency (Hz):
- 50/60
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61008
- IP rating:
- IP20
- Mounting type:
- TH 35
- Depth (mm):
- 68
Documents
Logistic Data
Product
- Net weight of the product
- 164 g
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 75 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895851509
- Basic packaging weight
- 0.187 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895851516
- Transport packaging weight
- 10.398 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC000003
- Class name
- Residual current circuit breaker (RCCB)
- Type of drive
- 50/60
- Degree of protection (IP), front side
- IP20
- Number of knife blade fuse holders
- 1+N
- Number of poles
- 2
- Rated voltage
- 230/240V
- Rated current
- 40A
- Rated fault current
- 0,03mA
- Mounting method
- DIN rail
- Leakage current type
- A
- Selective protection
- No
- Short-time delayed tripping
- No
- Short-circuit breaking capacity (Icw)
- 10kA
- Surge current capacity
- 0,4kA
- Additional equipment possible
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 2
- Built-in depth
- 68mm
- Connectable conductor cross section multi-wired
- 1-25mm²
