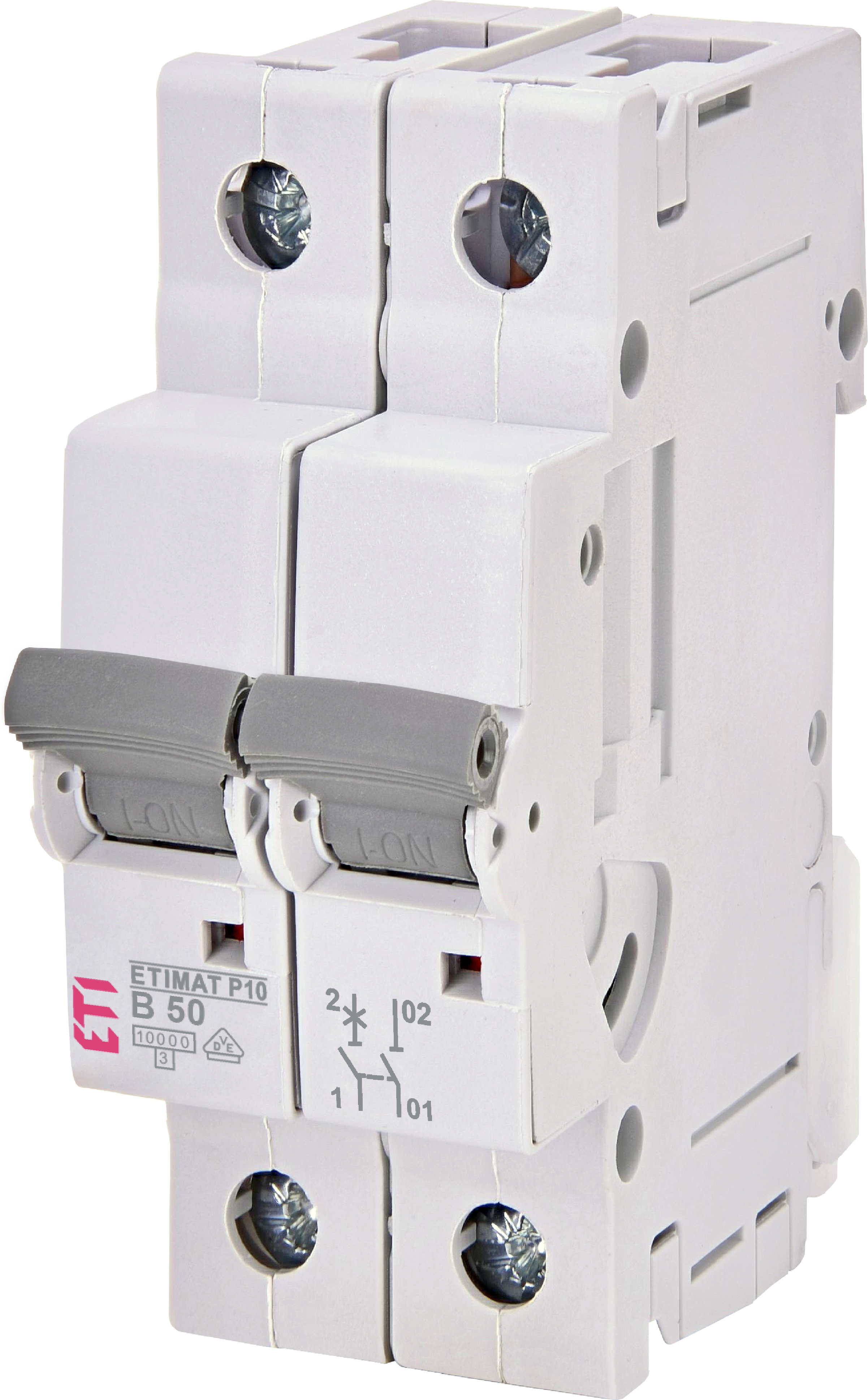

Miniature circuit breaker ETIMAT P10 1p+N B50 275010100
Specifications
- ETI Code:
- 275010100
- Description:
- ETIMAT P10 1p+N B50
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 50
- Tripping characteristic:
- B
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 10
- Voltage type:
- AC
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50/60
- Rated impulse withstand voltage Uimp (kV):
- 6
- Terminals (mm²):
- 1-25
- Standards:
- IEC/EN 60898-1, IEC 60947-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895652410
- Net weight of the product
- 240 g
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 75 mm
Level 1 Packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895652427
- Basic packaging weight
- 1.566 kg
Level 2 Packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895652434
- Transport packaging weight
- 8.03 kg
- Pallet quantity
- 2520
ETIM Clasification
- Classification
- EC000042
- Class name
- Miniature circuit breaker (MCB)
- Rated short-circuit breaking capacity according to EN 60898
- 10
- Number of knife blade fuse holders
- 1+N
- Release characteristic
- B
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated current
- 50A
- Rated voltage
- 230V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 6kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Voltage type
- Other
- Type of drive
- 50…60Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- Yes
- Over voltage category
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 2
- Built-in depth
- 69,5mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1-25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
