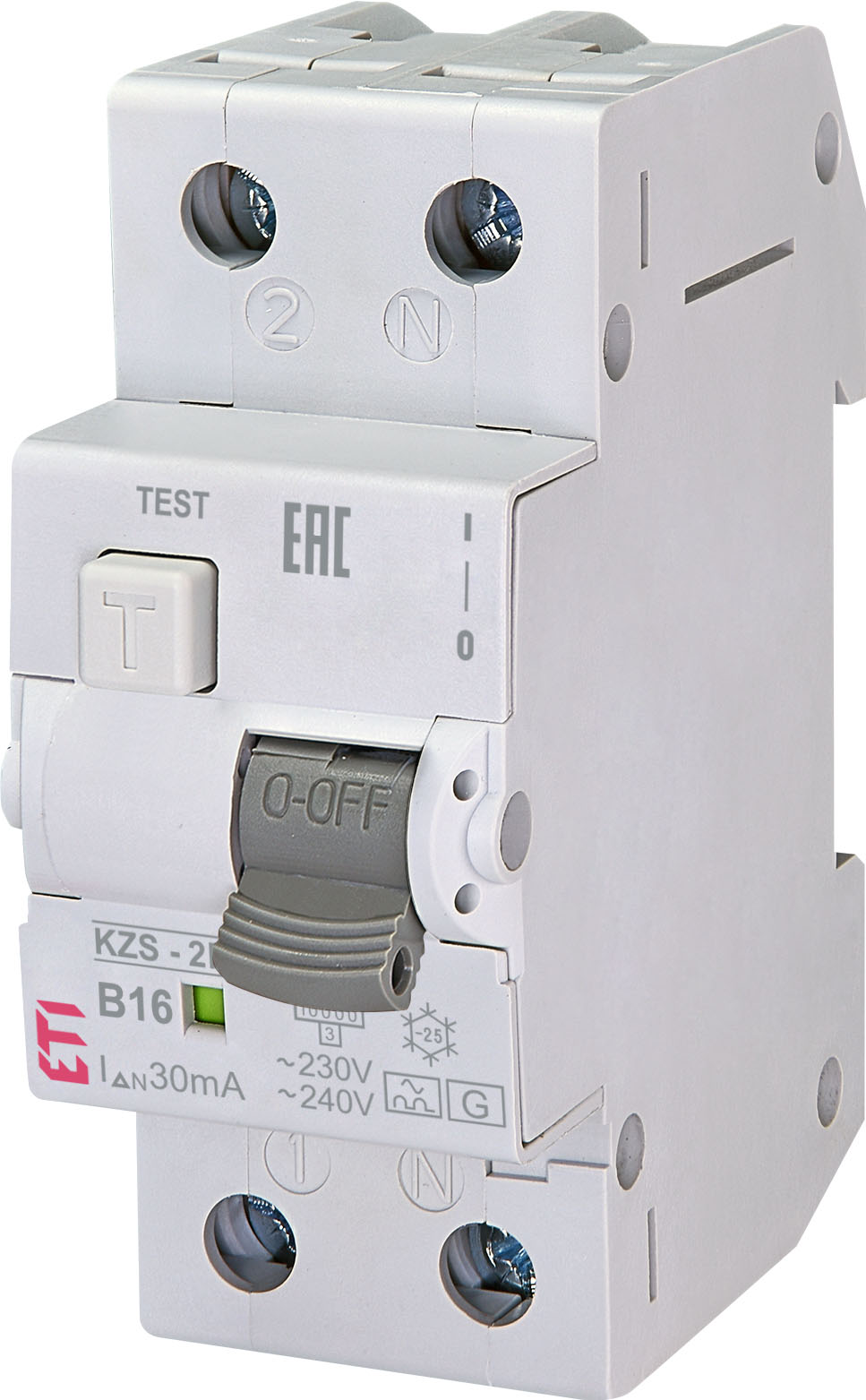

RCBO KZS-2M A G/KV B16/0.03 002174104
Specifications
- ETI Code:
- 002174104
- Description:
- KZS-2M A G/KV B16/0.03
- Class name:
- RCBO
- Rated residual current (A):
- 0.03
- Current type:
- A
- Rated current (A):
- 16
- Tripping characteristic:
- B
- Type:
- A
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 10
- Tripping time:
- G/KV (Short time delay)
- Rated voltage (V):
- 240
- Rated Frequency (Hz):
- 50/60 Hz
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61009, ÖVE E 8601
Documents
Logistic Data
Product
- Customs tariff
- 85362010
- logis_net_width
- 35 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 76 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895804215
- Basic packaging weight
- 0.24 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895804222
- Transport packaging weight
- 13.32 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 240V
- Rated insulation voltage Ui
- 500V
- Rated current
- 16A
- Rated fault current
- 0,03A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Surge current capacity
- 3kA
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- Ambient temperature during operating
- -25…40°C
- Width in number of modular spacings
- 2
- Built-in depth
- 69mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
