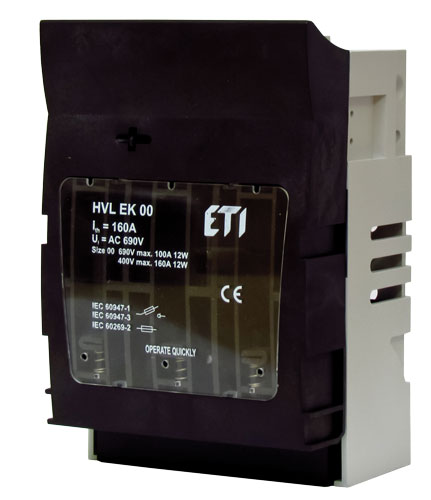

Fuse switch disconnector HVL EK 00 3p P00 10-70 001701252
Specifications
- ETI Code:
- 001701252
- Description:
- HVL EK 00 3p P00 10-70
- Class name:
- Fuse switch disconnector
- Size:
- NH00
- Rated current (A):
- 160
- Number of poles:
- 3
- Rated AC voltage (V):
- 690
- Utilization category:
- AC-22B
- Connection:
- P00 10-70
- Mounting:
- Screw-on
- Product group:
- Horizontal fuse-switch disconnector
Documents
Logistic Data
Product
- Customs tariff
- 85365080
- logis_net_width
- 106 mm
- logis_net_height
- 157 mm
- logis_net_depth
- 80 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895622451
- Basic packaging weight
- 0.6 kg
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3838895622482
- Transport packaging weight
- 12 kg
- Pallet quantity
- 1200
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Version as main switch
- Yes
- Version as safety switch
- Yes
- Rated permanent current Iu
- 160A
- Suitable for fuses
- NH000, NH00
- Number of poles
- 3
- With error protection
- No
- Type of electrical connection of main circuit
- Frame clamp
- Suitable for floor mounting
- Yes
- Type of control element
- Cover grip
