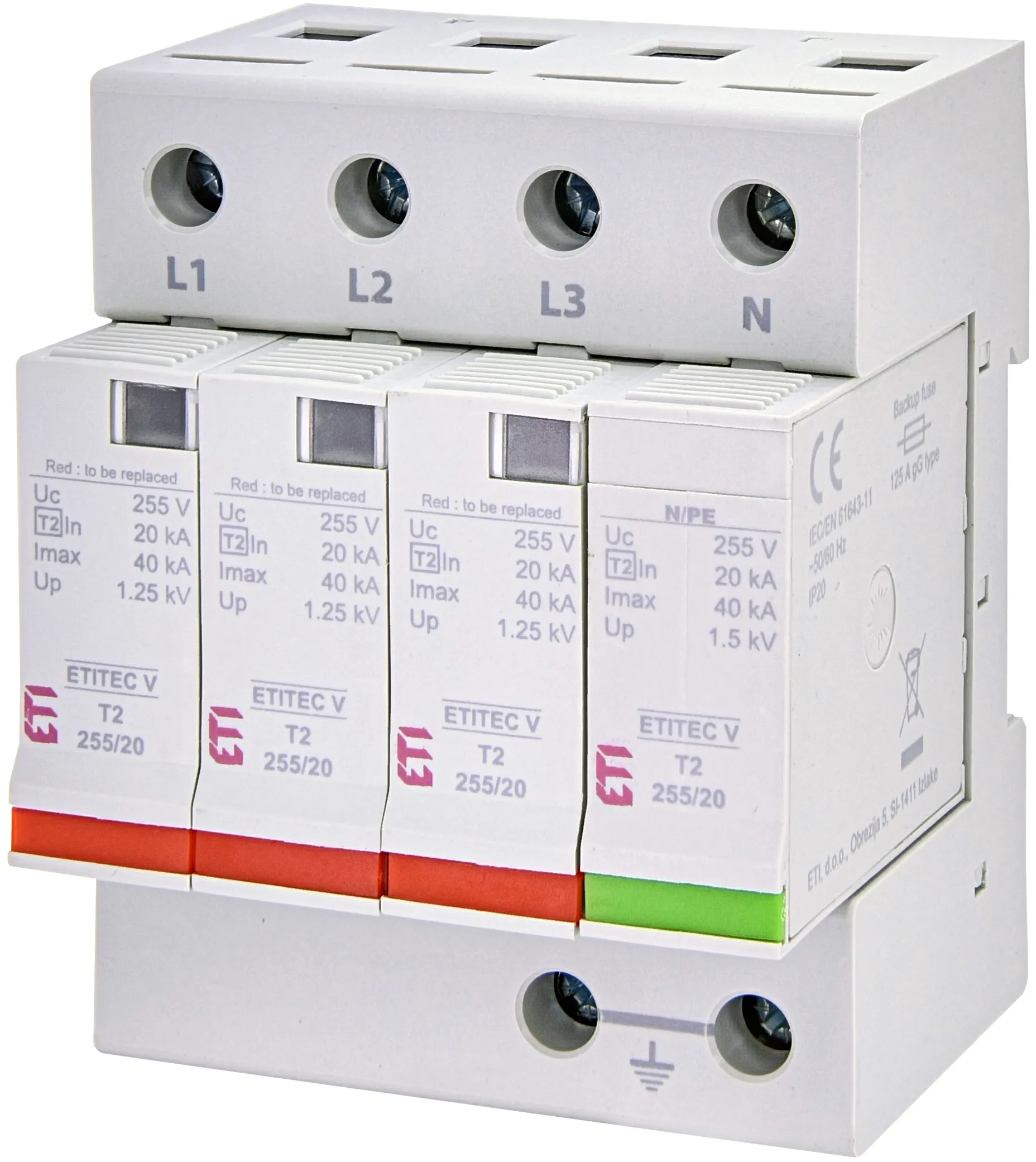

Surge arrester ETITEC V T2 255/20 3+1 002442957
Specifications
- ETI Code:
- 002442957
- Description:
- ETITEC V T2 255/20 3+1
- Class name:
- Surge arrester
- AC max continous operating voltage Uc:
- 255
- Type:
- T2
- In 8/20 (kA):
- 20
- Max. discharge current Imax, 8/20 (kA):
- 40
- Up - Voltage protection level (kV):
- 1,5
- Leakage current:
- YES
- Applied technology:
- MOV
- Remote signalisation:
- NO
- Network system:
- TT/TN-S
- Number of modules:
- 4
- Built-in depth (mm):
- 68
- Function:
- SPD
- Catalogue Group:
- ETITEC V
Documents
Logistic Data
Product
- Net weight of the product
- 0.431 kg
- Customs tariff
- 85354000
- logis_net_width
- 72 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 67 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895829041
- Basic packaging weight
- 0.453 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895829058
- Transport packaging weight
- 12.8 kg
- Pallet quantity
- 960
Intermediate packaging
- qty
- 2 pcs
- Weight
- 1.011 kg
- Height (mm)
- 78 mm
- Depth (mm)
- 183 mm
- volume
- 1.499 dm3
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- Number of knife blade fuse holders
- 4
- Degree of protection (IP), front side
- IP20
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN-C
- No
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20
- Nominal voltage AC
- 230
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 255
- Max. discharge surge current (8/20)
- 40
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- Other
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- With remote signalling contact
- No
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
