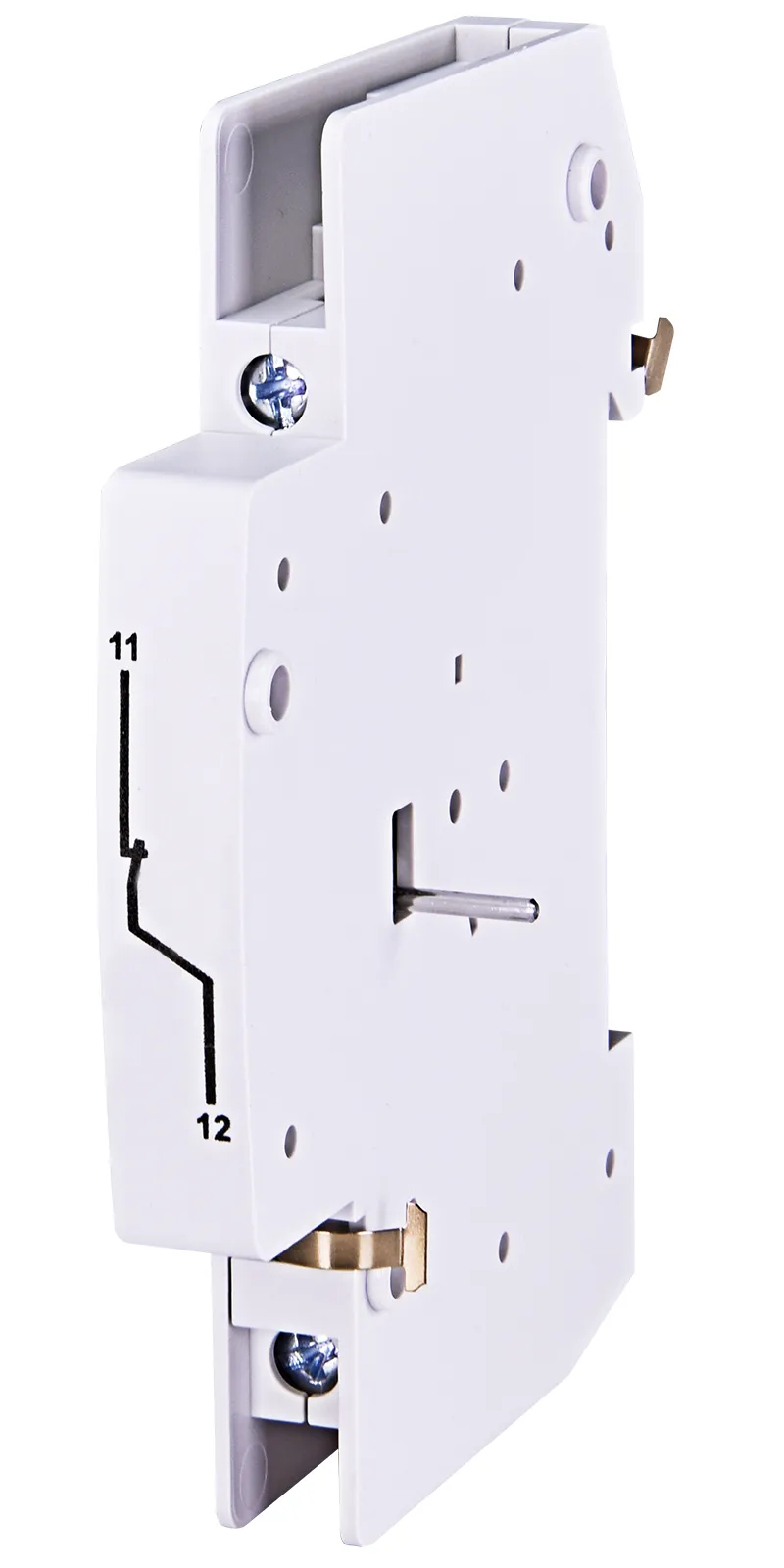

Auxiliary switch PS ETIMAT 10 M 002159032
Specifications
- ETI Code:
- 002159032
- Description:
- PS ETIMAT 10 M
- Class name:
- Auxiliary switch
- Number of NC contacts:
- 1
- Function:
- Auxiliary switch
- Rated Frequency (Hz):
- 50/60
- Rated cross section:
- 1-4
- For use with:
- ETIMAT 6
- Standards:
- EN 62019
Documents
Logistic Data
Product
- Net weight of the product
- 0.05 kg
- Customs tariff
- 85365080

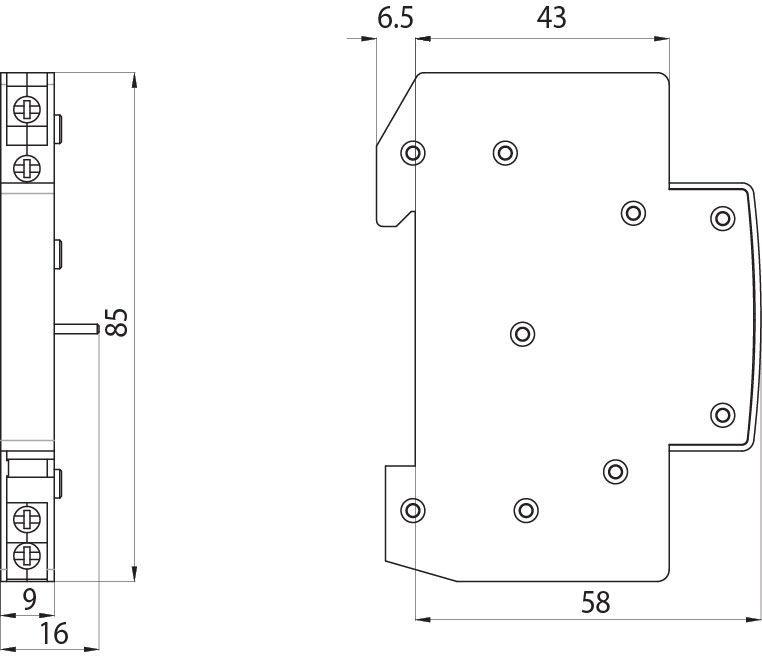

- logis_net_width
- 16 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 65 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895447887
- Basic packaging weight
- 0.032 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895447894
- Transport packaging weight
- 0.6 kg
- Pallet quantity
- 2880
ETIM Clasification
- Classification
- EC001286
- Class name
- Auxiliary device for distribution board devices
- Type of drive
- 50/60
- Connectable conductor cross section multi-wired
- 1-4
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Auxiliary switch
- Installed at the factory
- No
- Number of contacts as normally closed contact
- 1
- Rated switch current
- 6A
- Rated voltage
- 230V
- Voltage type for actuating
- AC
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 63A
