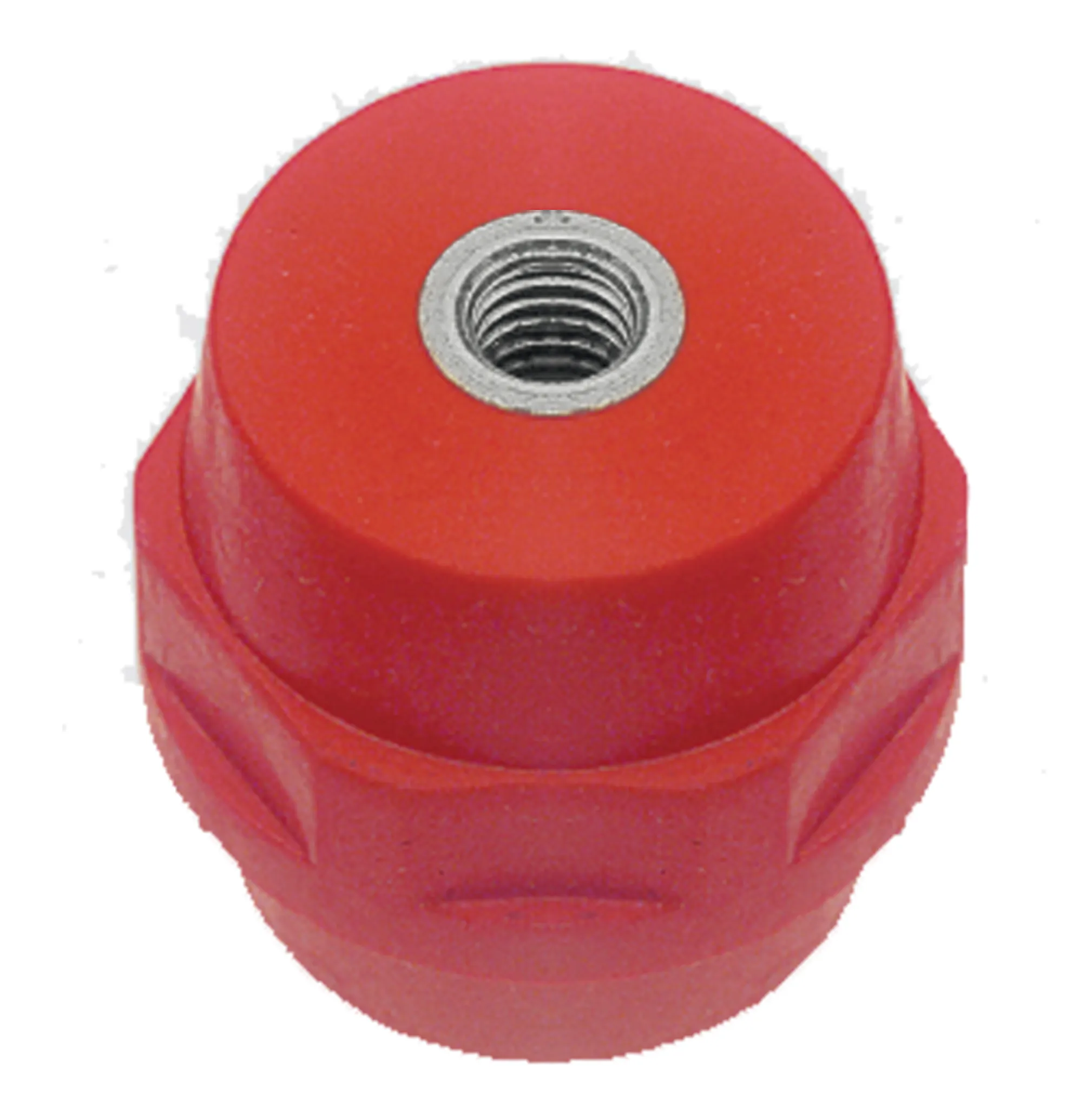

Busbar insulator INS 501250 003810235
Specifications
- ETI Code:
- 003810235
- Description:
- INS 501250
- Class name:
- Busbar insulator
- Rated voltage (V):
- 1500
- Impuls isolation strenght (kV):
- 50
- Working temperature (°C):
- -20°C do +120°C
- Material:
- Polyester BMC
- Flammable class:
- V0
- Height (mm):
- 50
- Width (mm):
- 50
- Hole diameter (mm):
- 12
Documents
Logistic Data
Product
- Net weight of the product
- 0.075 kg
- Customs tariff
- 85469010
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895495529
- Basic packaging weight
- 0.075 kg
Transport packaging
- Transport packaging quantity
- 25
- EAN code for a transport packaging
- 3838895495536
- Transport packaging weight
- 1.875 kg
- Pallet quantity
- 6425
