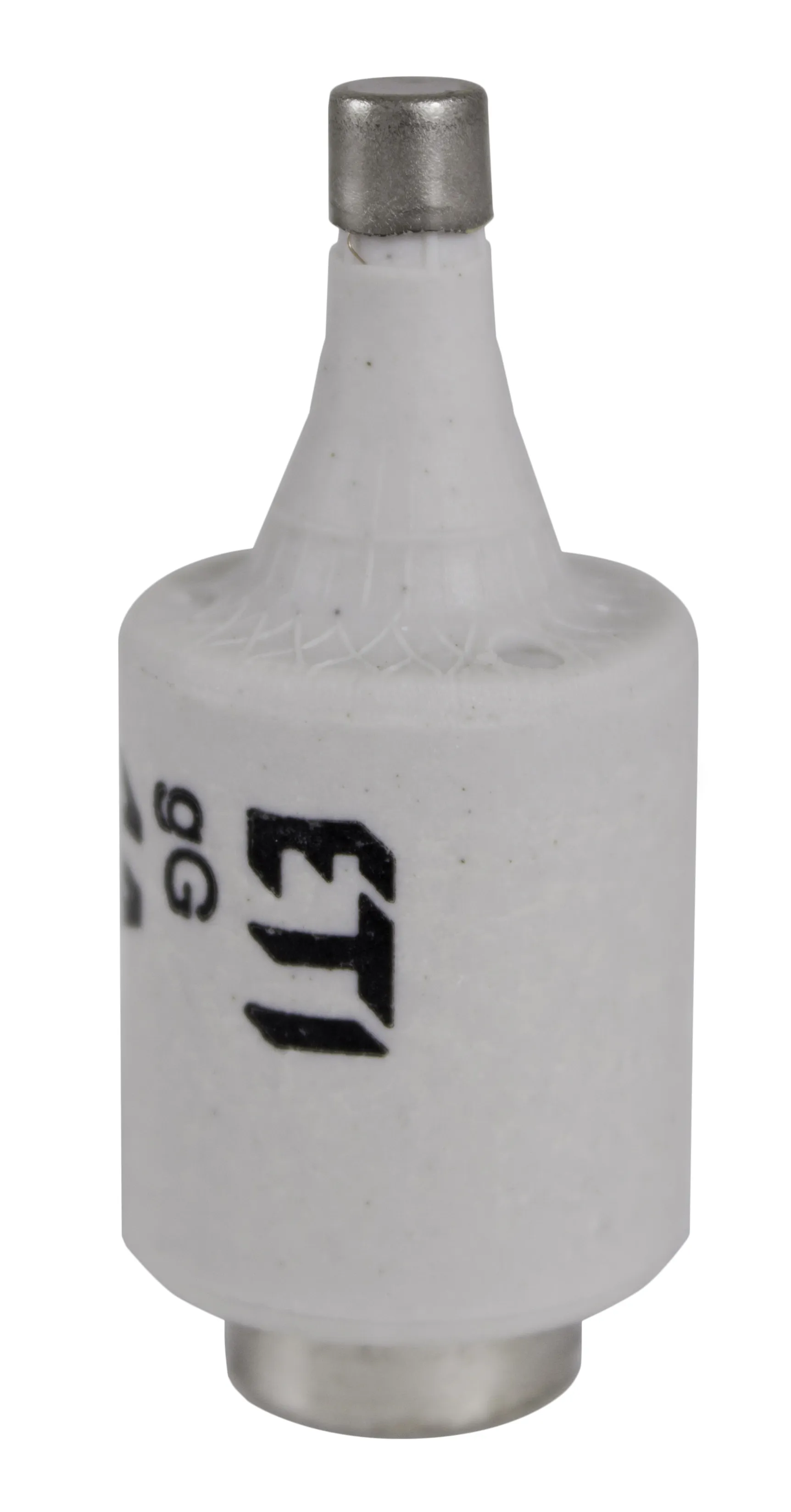

Fuse link DII gG 16A/500V 002312405
Specifications
- ETI Code:
- 002312405
- Description:
- DII gG 16A/500V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- D
- Size:
- DII
- Rated current (A):
- 16
- Rated AC voltage (V):
- 500
- Rated DC voltage (V):
- 250
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Dimensions:
- E27
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 2,40
- Standards:
- DIN EN 60269-1, DIN EN 60269-3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895906063
- Net weight of the product
- 25 g
- Customs tariff
- 85361050
- logis_net_width
- 22 mm
- logis_net_height
- 22 mm
- logis_net_depth
- 50 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895000068
- Basic packaging weight
- 0.145 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895163534
- Transport packaging weight
- 15.13 kg
- Pallet quantity
- 26000
ETIM Clasification
- Classification
- EC000099
- Class name
- D-system fuse link
- Type of fuse status indicator
- Top fuse status indicator
- Max. rated operation voltage Ue AC
- 500
- Rated voltage DC
- 250
- Breaking capacity
- 50
- Construction size
- DII
- Rated current
- 16A
- Rated voltage
- 500V
- Colour code
- Grey
- Release characteristic
- Time-lag (T)
