Fuse link D01 UQ gR 4A/400V 004311002
Specifications
- ETI Code:
- 004311002
- Description:
- D01 UQ gR 4A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- D0
- Size:
- D01
- Rated current (A):
- 4
- Rated AC voltage (V):
- 400
- Rated DC voltage (V):
- 250
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Application:
- For protection of semiconductor devices

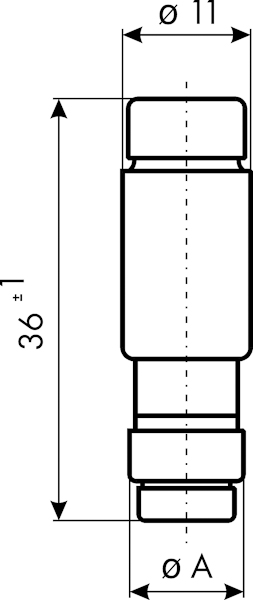

- Dimensions:
- E14
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 3,1
- Operating joule integral (A2s):
- 13
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400051882
- Net weight of the product
- 6.6 g
- Customs tariff
- 85361010
- logis_net_width
- 11 mm
- logis_net_height
- 36 mm
- logis_net_depth
- 11 mm
Level 1 Packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895013402
- Basic packaging weight
- 0.06 kg
Level 2 Packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895163961
- Transport packaging weight
- 3.33 kg
- Pallet quantity
- 85000
ETIM Clasification
- Classification
- EC001642
- Class name
- D0-system fuse link
- Breaking capacity
- 50
- Type of fuse status indicator
- Top fuse status indicator
- Max. rated operation voltage Ue AC
- 400
- Application
- For protection of semiconductor devices
- Rated voltage DC
- 250
- Construction size
- D01
- Rated current
- 4A
- Rated voltage
- 400V
- Colour code
- Brown
- Utilization category
- Other
Characteristic
