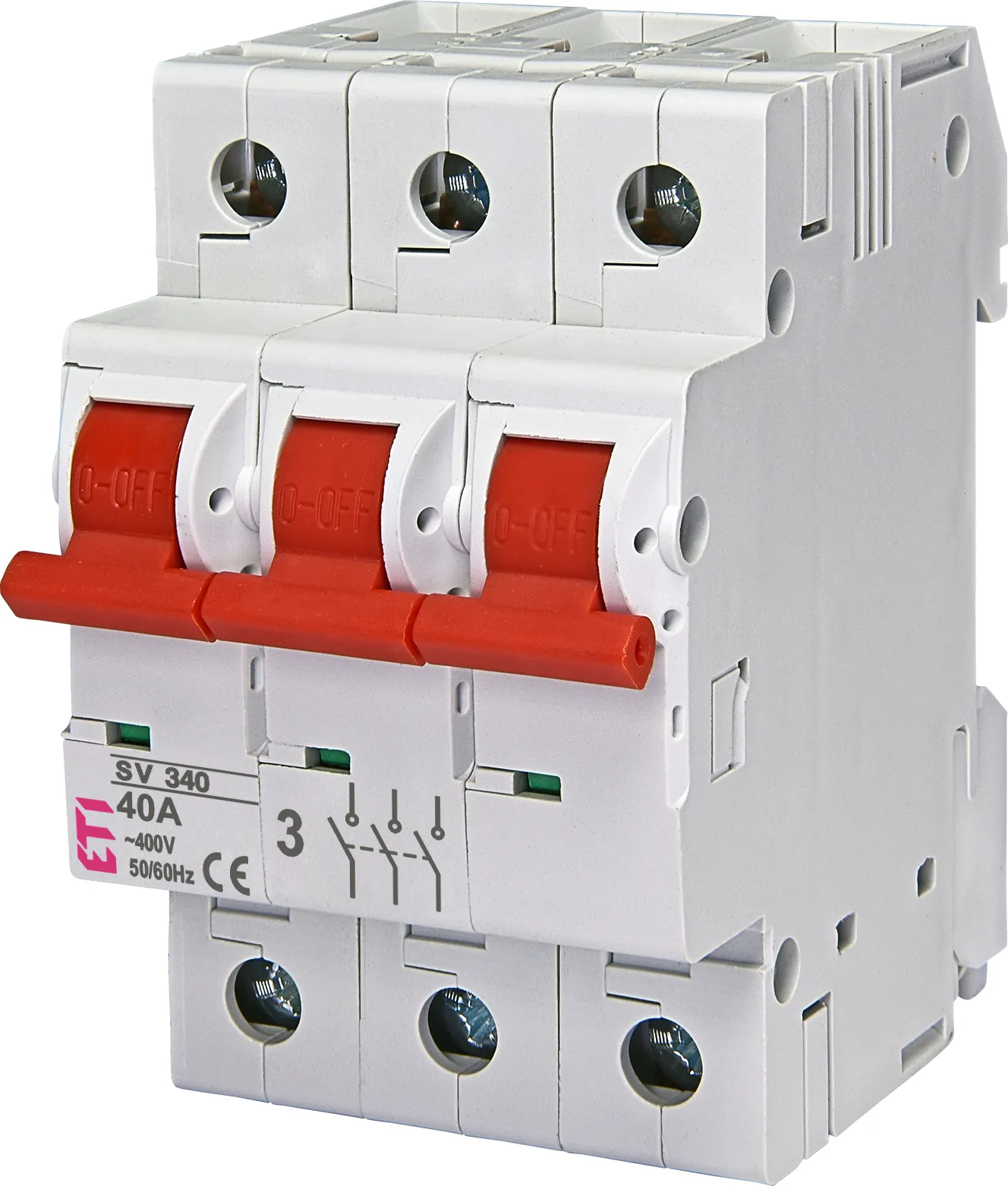

Build-in switch SV 340 3p 40A 002423323
Specifications
- ETI Code:
- 002423323
- Description:
- SV 340 3p 40A
- Class name:
- Build-in switch
- Function:
- Build-in switch
- Rated current (A):
- 40
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895321415
- Net weight of the product
- 0.306 kg
- Customs tariff
- 85365080
- logis_net_width
- 54 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 74 mm
Level 1 Packaging
- Basic packaging quantity
- 4
- EAN code for a basic packaging
- 3838895321422
- Basic packaging weight
- 1.18 kg
Level 2 Packaging
- Transport packaging quantity
- 36
- EAN code for a transport packaging
- 3838895321439
- Transport packaging weight
- 11 kg
- Pallet quantity
- 1872
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Version as emergency stop installation
- Yes
- Max. rated operation voltage Ue AC
- 400V
- Rated permanent current Iu
- 40A
- Conditioned rated short-circuit current Iq
- 2kA
- Number of poles
- 3
- Voltage release optional
- Yes
- Device construction
- Built-in device fixed built-in technique
- Suitable for distribution board installation
- Yes
- Type of control element
- Rocker lever
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
